Fiber Optical PigtailYou are here: Home > Products > Fiber Optical Pigtail > Fiber Optical Pigtail Simplex
Description:

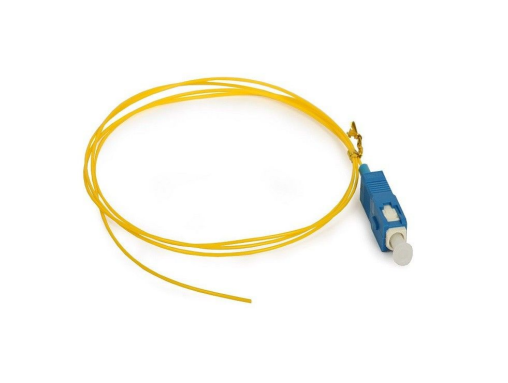

Fiber optical pigtail is a fiber optic cable terminated with a factory-installed connector on one end, leaving the other end unterminated. Hence the connector side can be linked to equipment and the other side melted with optical fiber cables. Fiber optic pigtail are utilized to terminate fiber optic cables via fusion or mechanical splicing.
Sketch map:
Features:
Low insertion loss, high return loss
General use waterproof, adapt for outdoor hard environment
Easy to install, high reliability
FC SC ST LC MU connectors are available
Applications:
Telecommunication networks:LAN access net
Testing equipment
Optic fiber CATV systems
FTTH
Specification:
|
Parameter |
|||||
|
Item |
Mode Type |
PC |
SPC |
UPC |
APC |
|
Insertion Loss |
SM |
≤0.25dB |
≤0.20dB |
≤0.20dB |
≤0.15dB |
|
MM |
≤0.30dB |
≤0.20dB |
≤0.20dB |
≤0.30dB |
|
|
Return Loss |
SM |
≥45dB |
≥50dB |
≥55dB |
≥65dB |
|
MM |
≥35dB |
≥35dB |
≥35dB |
≥35dB |
|
|
Repetition Test |
Additional Loss≤0.1dB,Return Loss Variability<5dB |
||||
|
Temperature Stability('-40°C~85°C) |
Additional Loss≤0.2dB,Return Loss Variability<5dB |
||||
|
Operating Temperature |
-40°C+~75°C |
||||
|
Storage Temperature |
-40°C+~85°C |
||||
|
-Option for Cable Diameters:0.9mm , 2.0mm ,3.0mm & others |
|||||
|
-Type:simplex and duplex |
|||||
|
-Material Type: PVC , Hytrel , LSZH , OFNP , OFNR |
|||||
3D Parameters:
|
Specifcation |
Radius Of Curvature |
Apex Offset |
Fiber Undercut and Protrusion |
|
Factory Standard |
PC:10~25mm/APC:5~12mm |
< 50um, ROC*a(a=Offset Angle, a≤0.2°) |
-50nm~+50nm |
|
IEC Standard |
PC:10~25mm/APC:5~12mm |
|
-0.02R³+1.3R²-32R+325 ~+50nm |
|
GR-326-Core Standard |
PC:7~25mm/APC:5~12mm |
|
-125nm~+50nm |
Ordering information:
|
FOP |
Type |
Singlemode(9/125) |
Multimode |
||
|
Connector |
Connector Type(A) |
SC ,FC ,ST,FC,MU ,MTRJ ,Others |
|||
|
Polishing Type(A) |
UPC/APC |
UPC |
UPC |
UPC |
|
|
Connector Type(B) |
SC ,FC,ST ,FC ,MU,MTRJ,Others |
||||
|
Polishing Type(B) |
UPC/APC |
UPC |
UPC |
UPC |
|
|
Cable |
Cable Fiber Type |
G652/G655/G657 |
OM1(62.5/125) |
OM2(50/125) |
OM3/OM4(50/125) |
|
Cable Length |
0.1meter to 999meter |
||||
|
Cable Type |
simplex/duplex |
||||
|
Cable OD |
0.9mm, 2.0mm, 3.0mm |
||||
