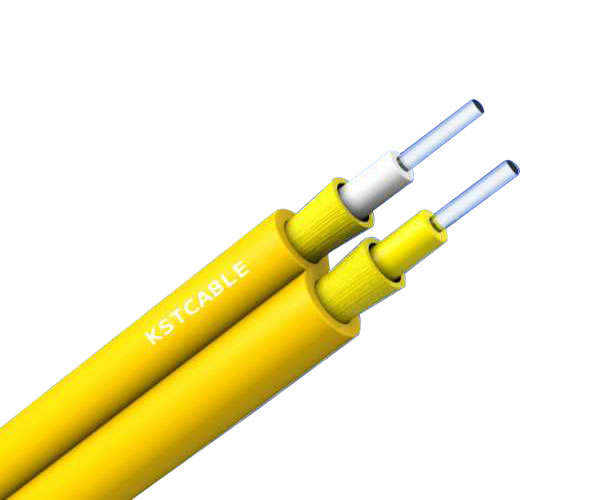

GJFJV Duplex Zipcord Indoor Cable
Inquiry
Detailed Description
Product Name：Duplex Zipcord(GJFJV)
Model：Duplex Zipcord Indoor Cable
Number：I002
Application:
☆.Adopted to indoor distribution..
☆.As pigtail of communication equipment.
☆.Suitable for communication equipment served.
☆.Can be installed conveniently and perated simply.
Characteristics:
☆.Hight strength kevlar yarn member.
☆.High quality tight buffered or loose tube.
☆.Soft and easy to strip.
☆.Round construction.
Technical Parameters:
|
Out sheath
Diameter
|
Tight buffer
Diameter
|
Weight
|
Minimum allowable Tensile Strength
(N)
|
minimum allowable Crush Load
（N/100mm)
|
Minimum Bending Radius
(MM)
|
Storage
temperature
|
|
（MM)
|
（MM)
|
（KG)
|
short term
|
long term
|
short term
|
long term
|
short term
|
long term
|
（℃）
|
|
1.6×3.4
|
0.6
|
4.80
|
150
|
80
|
500
|
100
|
20D
|
10D
|
-20+60
|
|
1.8×3.8
|
0.6
|
5.00
|
150
|
80
|
500
|
100
|
20D
|
10D
|
-20+60
|
|
2.0×4.2
|
0.9
|
7.00
|
150
|
80
|
500
|
100
|
20D
|
10D
|
-20+60
|
|
2.4×5.0
|
0.9
|
9.00
|
150
|
80
|
500
|
100
|
20D
|
10D
|
-20+60
|
|
2.8×5.8
|
0.9
|
11.50
|
150
|
80
|
500
|
100
|
20D
|
10D
|
-20+60
|
|
3.0×6.2
|
0.9
|
12.50
|
150
|
80
|
500
|
100
|
20D
|
10D
|
-20+60
|
|
Optical Characteristics:
|
|
Fiber Sort
|
Multimode
|
G.651
|
A1a:50/125
|
Graded-index fiber
|
|
A1b:62.5/125
|
|
Singlemode
|
G.652(A、B、C）
|
B1.1:Conventional fiber
|
|
G.652D
|
B2: Zero dispersion shifted
|
|
G.655
|
B1.2 :Cut-off wavelength shifted
|
|
G.657（A1、A2 、B3）
|
B4: Main technical data for positive
dispersion shifted single-mode fiber
|
