MPO/MTP Harness and Fan-out Assemblies

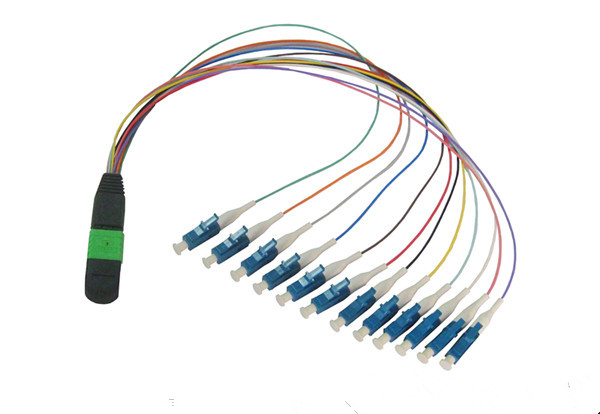

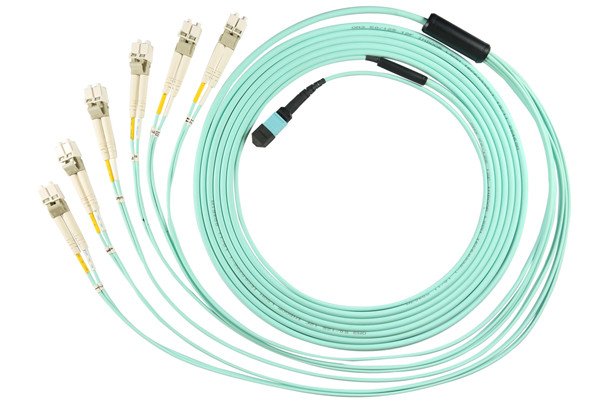

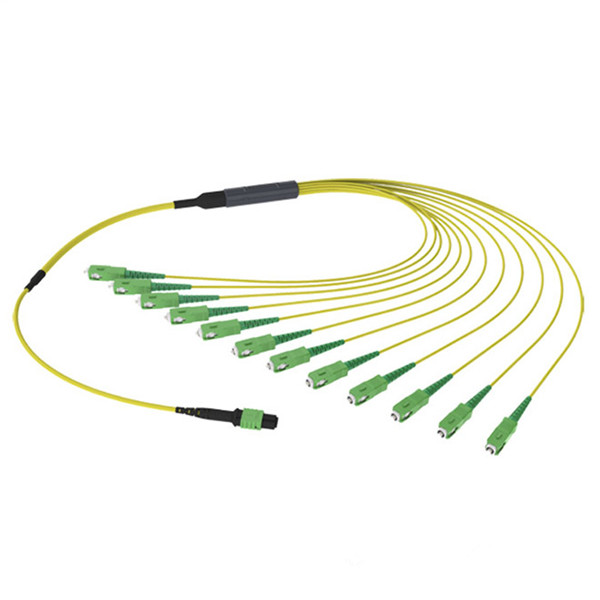

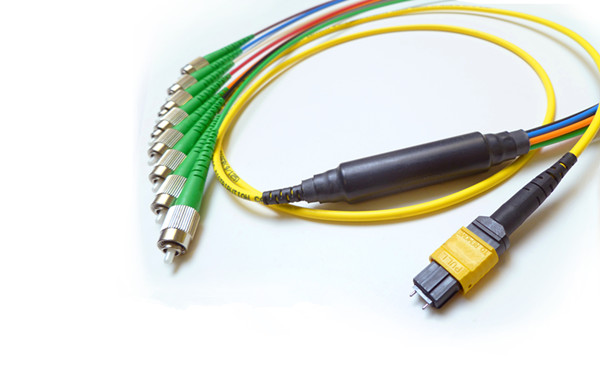

MPO / MTP fan-out cables are designed to use fan-out kit convert to standard optical connectors, harness cables are designed to fan-out standard optical connectors directly with 0.9mm loose tube. Input use MTP/MPO high density multi-fiber connectors and output usually with LC,SC,FC,E2000 and so on. It fit for different installation environment and easy to install between different transmission equipment or different racks and cassette modules.



Applications

• Backbone installation
• Data center cabling
• Support 40G and 100G network
• Telecommunication network
• CATV, Video and Multimedia
• Industrial & Military



Features

• Easy racks and cassette modules installation
• 100% tested before delivery
• MTP and MPO available
• Other end FC, SC, ST, LC, MTRJ, E2000 available
• Use 8/12/24 Cores fiber connector
• SM/OM1/OM2/OM3/OM4 or Customized
• LSZH, OFNR, OFNP available
• Cable diameter 0.9mm or 2.0mm available

Cable Mechanical Specifications

	FIBER	ADVENTUM		MINI-CORE
		OFNP	OFNR	OFNP	OFNR	LSZH
Minimum Bend Radius (Installation)	8	9.9 cm	9.7 cm	6.0 cm	6.0 cm	6.0 cm
	12	9.9 cm	9.7 cm	6.0 cm	6.0 cm	6.0 cm
Minimum Bend Radius (Long Term)	8	6.6 cm	6.5 cm	3.0 cm	3.0 cm	3.0 cm
	12	6.6 cm	6.5 cm	3.0 cm	3.0 cm	3.0 cm
Maximum Tensile (Installation)	8	1335N	1335N	150N	150N	150N
	12	1335N	1335N	150N	150N	150N
Maximum Tensile (Long Term)	8	400N	400N	80N	80N	80N
	12	400N	400N	80N	80N	80N
