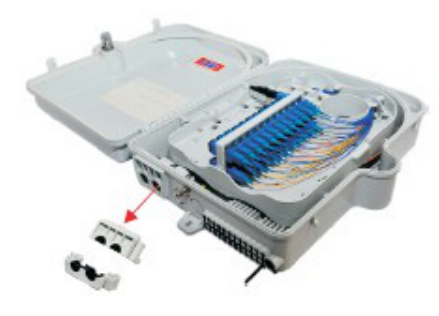

Fiber Distribution Box 24 Core

Description:

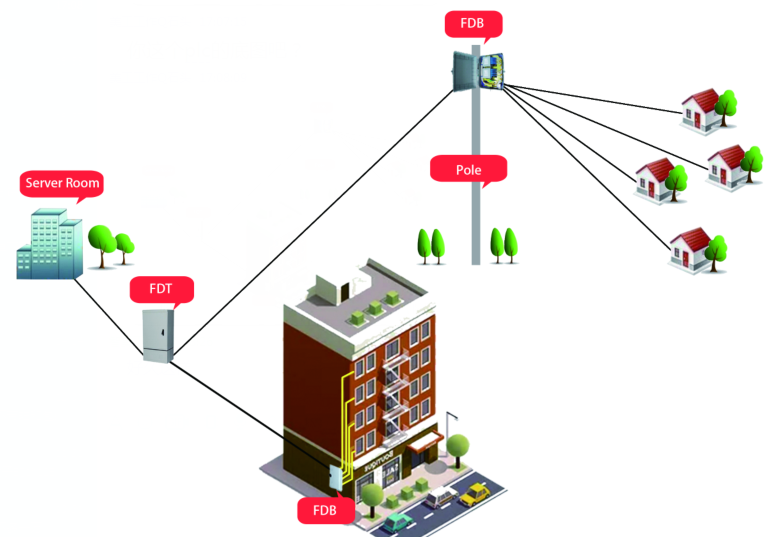

This type fiber access termination box（FDB is able to hold up to 24 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features：

Outdoor application and good UV resistant.

Apply to wall-mounted，pole-mounted.

Numerous applications such as mid-span，branch and direct splice

Different splitter panels support micro splitter with adapter

Adapter slots used – No screws and tools needed for installing adapters.

Space saving Double-layer design for easier installation and maintenance.

High strength material with good weather adaptability.

Excellent sealing performance，It is compatible with different optical cable

Configuration:

Item		Specification	Remarks
Size（mm）		320*240*100
Installation size（mm）		D*E:206*274
Material		PC+ABS
Protection Level		IP66
Max Capacity	Splitter	1x8/1x16: 2pcs
	Pigtail	24pcs
Weight（KG）		1.3
Color		Light Gray
Operating Temperature（℃）		-40～+65



Fibre-optic cable box is an interface device for connecting the main cable to the wiring cable outdoors, in the corridor or in the room.
