LC Fiber Optical Connector

APPLICATIONS                                           FEATURES

● CATV                                                          ● UL-rated plastic housing

● Active device termination                        ● Telcordia style boots

● Metro                                                         ● Boots in a variety of colors

● Test equipment                                         ● Free-floating ceramic ferrule

● Local Area Networks (LANs)                     ● Low insertion loss and back reflection loss

● Telecommunication networks                 ● Precision anti-rotation key and corrosion resistant body

● Data processing networks

● Wide Area Networks (WANs)



AVAILABILITY

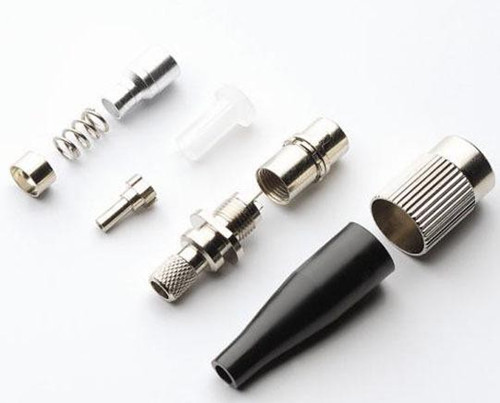

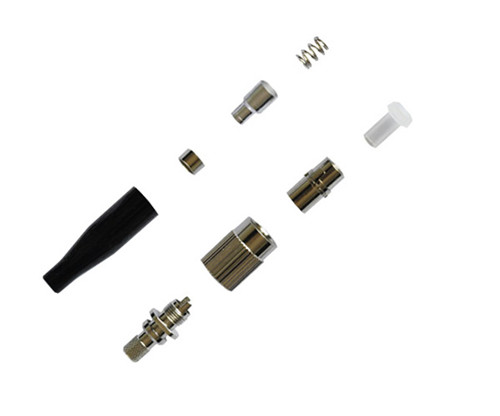

● The connector can be supplied as a pre-assembled one-piece connector or as connector kits.

● Clips are available for duplex connectors

● Housing kits without ferrule are available.



SPECIFICATIONS

Insertion Loss	≤0.20dB
Return Loss	≥65 dB
Durability	≤0.2 dB typical change, 1000 matings
Operating Temperature	-40 to + 85°C
	125.0+1/-0ìm, Concentricity: ≤0.5ìm
Ferrule Hole Sizes	125.3+1/-0ìm, Concentricity: ≤0.5ìm
	125.5+1/-0ìm, Concentricity: ≤0.5ìm
	126.0+1/-0ìm, Concentricity: ≤0.5ìm
