Fiber Optical ConnectorYou are here: Home > Products > Fiber Optical Connector > LC Connector
APPLICATIONS FEATURES
● Gigabit Ethernet ● RJ-45 style interface
● Video ● Compact, pull-proof design
● Multimedia ● High precision alignment
● Active device termination ● Behind-the-Wall style short connector
● Telecommunication networks ● UL-rated plastic housing and boot
● Low insertion loss and back reflection loss
AVAILABILITY

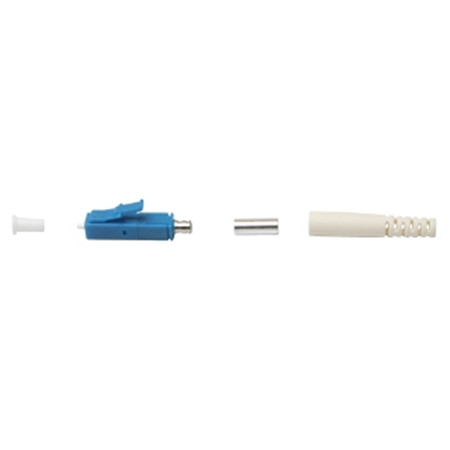

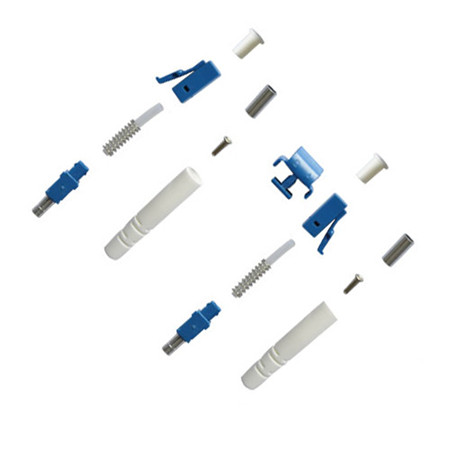

● The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
● Clips are available for duplex connectors

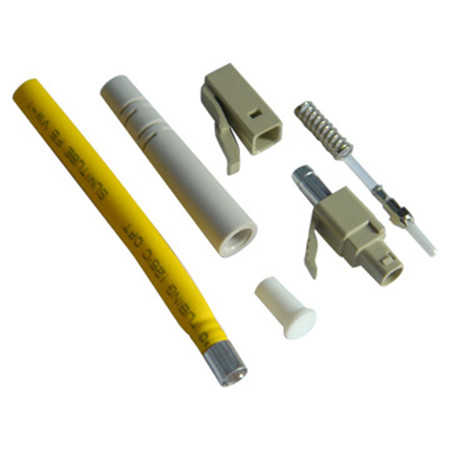

● Housing kits without ferrule are available.
● LC/PC and LC/APC are available.
SPECIFICATIONS
|
|
Single mode |
Multimode |
|
Insertion Loss |
≤0.20dB |
≤0.25dB |
|
Return Loss |
≥55 dB (PC) |
|
|
≥65 dB (APC) |
||
|
Durability |
<0.20 dB typical change, 1000 matings |
|
|
Operating Temperature |
-40 to + 85°C |
-40 to + 85°C |
|
Ferrule Hole Sizes |
125.0+1/-0ìm, Concentricity: ≤1.0ìm |
127ìm, Concentricity: ≤3.0ìm |
|
125.5+1/-0ìm, Concentricity: ≤1.0ìm |
|
|
|
126.0+1/-0ìm, Concentricity: ≤1.0ìm |
