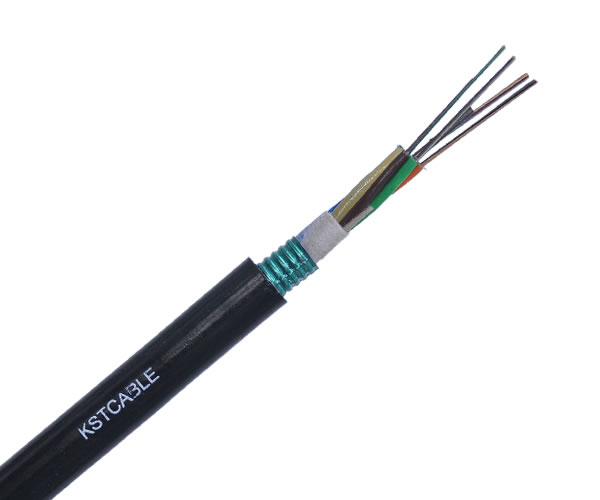

Steel Tape layer Loose Tube Outdoor Cable GYTS
Inquiry
Detailed Description
Product Name：GYTS
Model：Steel Tape layer Loose Tube Outdoor Cable
Number：O002
Application:
☆.Adopted to Outdoor distribution.
☆.Suitable for aerial .pipeline laying method.
☆.Long distance and local area network communication.
Characteristics:

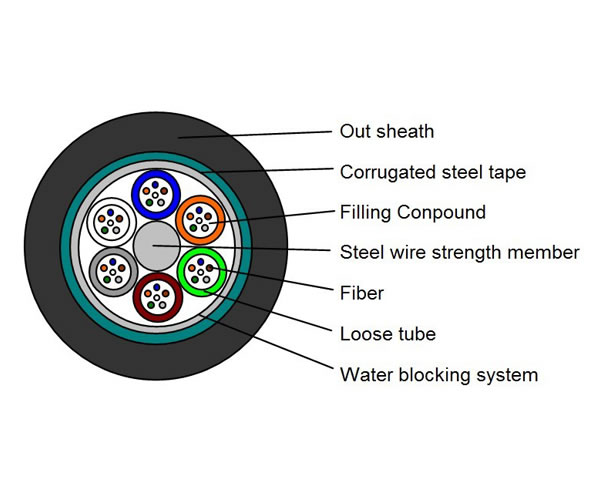

☆.Steel wire strength.filler protect tube fiber.steel tape armord.
☆.Good ultra violet radiation resistant property.
☆.Good moisture-resistance.
Technical Parameters:
|
Cable Count
|
Out sheath
Diameter
|
Weight
|
Minimum allowable Tensile Strength
(N)
|
minimum allowable Crush Load
（N/100mm)
|
Minimum Bending Radius
(MM)
|
Storage
temperature
|
|
（MM)
|
（KG)
|
short term
|
long term
|
short term
|
long term
|
short term
|
long term
|
（℃）
|
|
24
|
10.5
|
105.00
|
1500
|
600
|
1000
|
300
|
20D
|
10D
|
-40+60
|
|
36
|
10.5
|
105.00
|
1500
|
600
|
1000
|
300
|
20D
|
10D
|
-40+60
|
|
42
|
10.5
|
105.00
|
1500
|
600
|
1000
|
300
|
20D
|
10D
|
-40+60
|
|
48
|
10.5
|
105.00
|
1500
|
600
|
1000
|
300
|
20D
|
10D
|
-40+60
|
|
60
|
10.5
|
105.00
|
1500
|
600
|
1000
|
300
|
20D
|
10D
|
-40+60
|
|
72
|
13.5
|
208.00
|
1500
|
600
|
1000
|
300
|
20D
|
10D
|
-40+60
|
| 96 |
13.5 |
208.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
| 144 |
15.5 |
295.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
Optical Characteristics:
|
|
Fiber Sort
|
Multimode
|
G.651
|
A1a:50/125
|
Graded-index fiber
|
|
A1b:62.5/125
|
|
Singlemode
|
G.652(A、B、C）
|
B1.1:Conventional fiber
|
|
G.652D
|
B2: Zero dispersion shifted
|
|
G.655
|
B1.2 :Cut-off wavelength shifted
|
|
G.657（A1、A2 、B3）
|
B4: Main technical data for positive
dispersion shifted single-mode fiber
|
